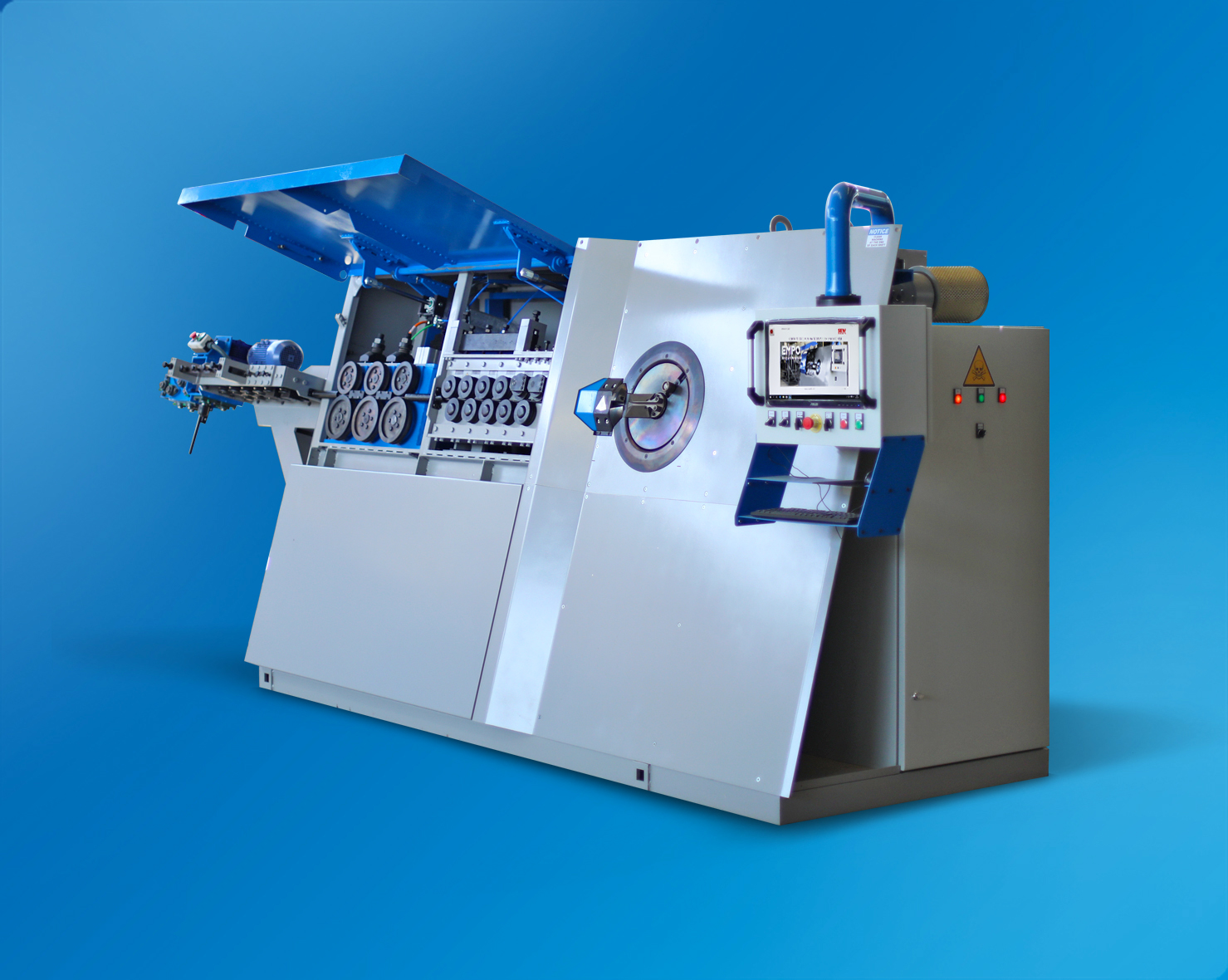

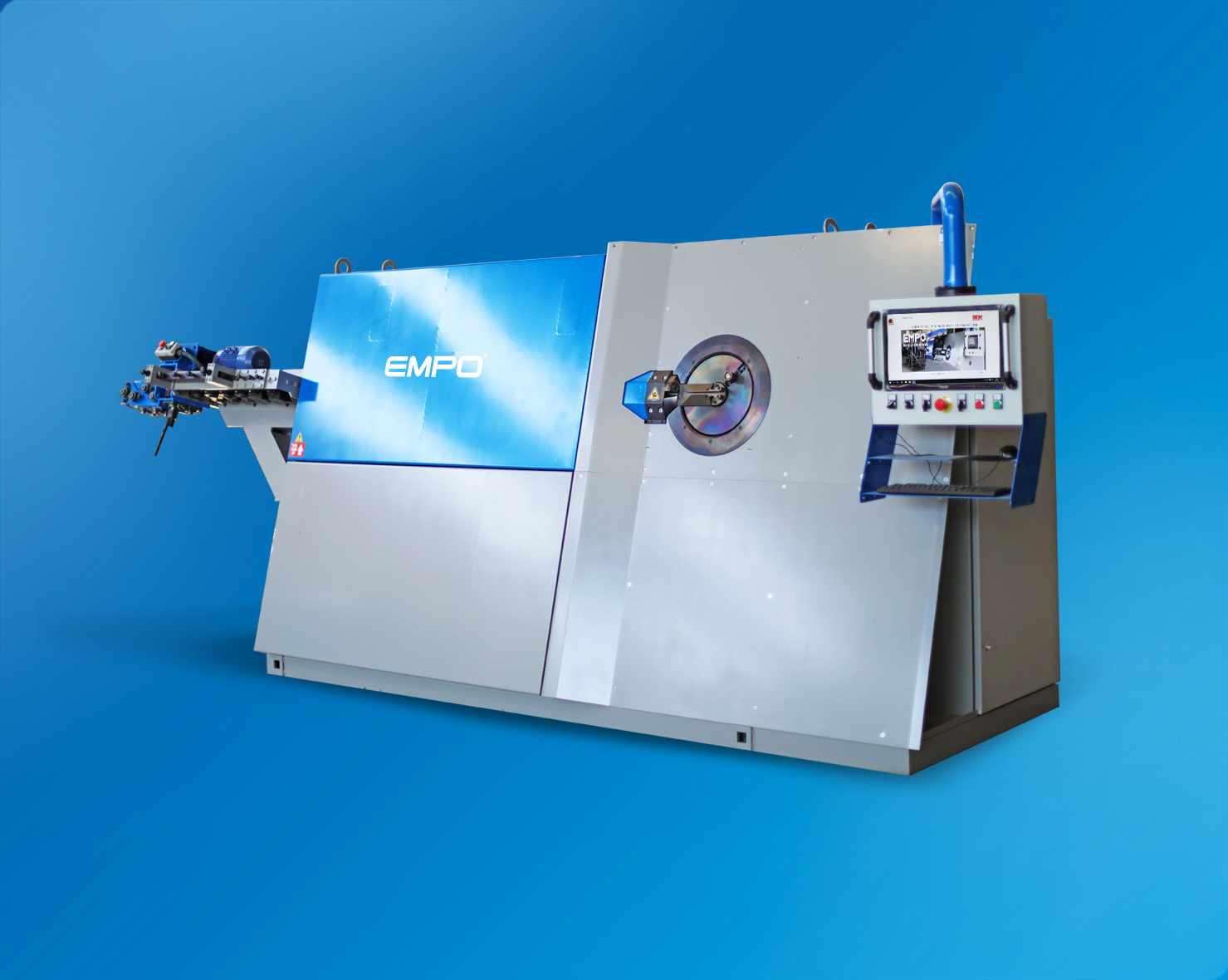

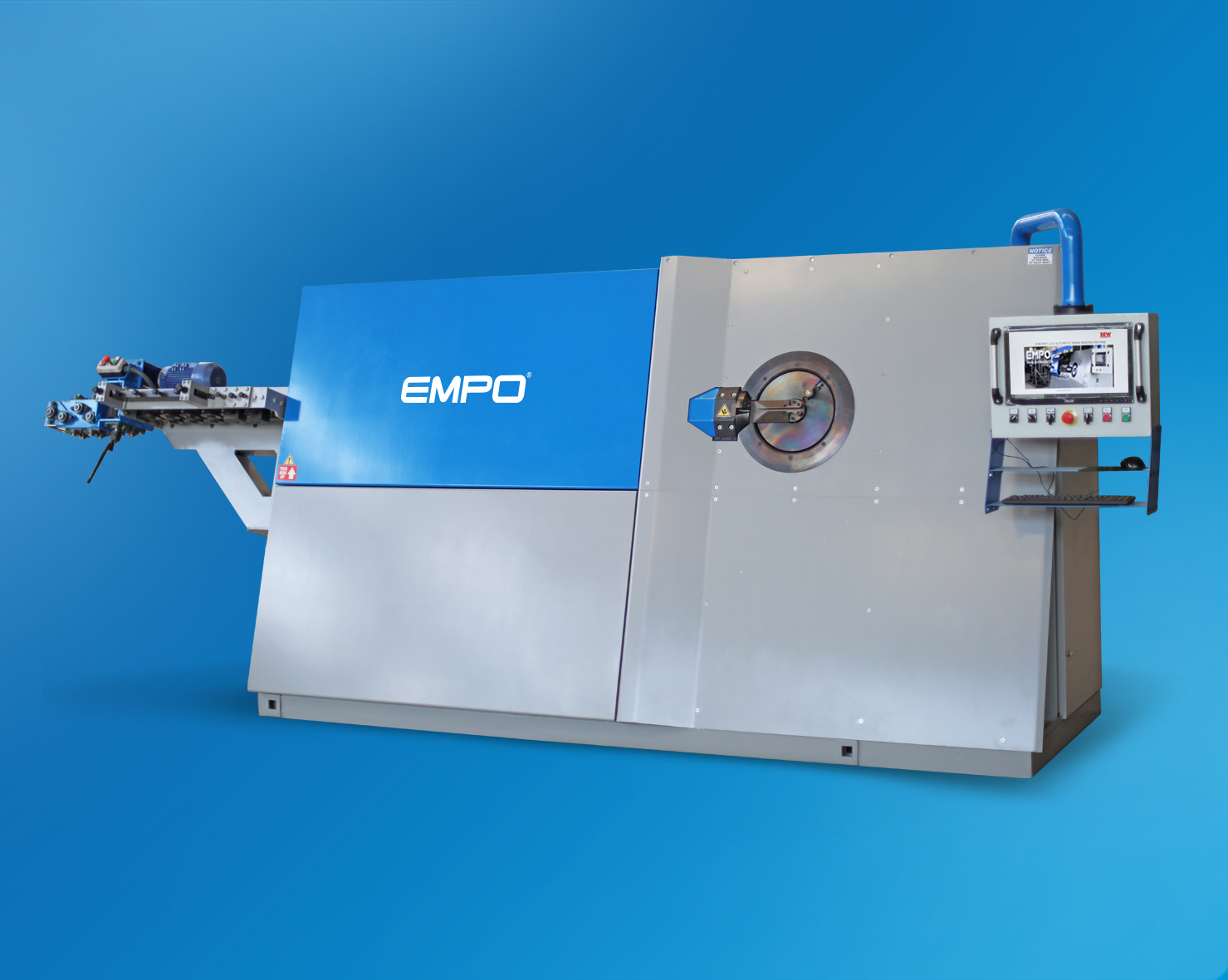

Robomat 2212 Automatic Stirrup Bending Machine

Robomat 2212 Automatic Stirrup Bending Machine Backward

Robomat 2212 Automatic Stirrup Bending Machine  Robomat 2212 Automatic Stirrup Bending Machine  Robomat 2212 Automatic Stirrup Bending Machine  Robomat 2212 Automatic Stirrup Bending Machine  Robomat 2212 Automatic Stirrup Bending Machine  Robomat 2212 Automatic Stirrup Bending Machine  Robomat 2212 Automatic Stirrup Bending Machine  Robomat 2212 Automatic Stirrup Bending Machine  Robomat 2212 Automatic Stirrup Bending Machine

Technicial Specifications

  • Model ROBOMAT - 2212
  • Works With Raw Metarial Coil
  • Type of Wire Ribbed & Smooth
  • Production Capacity (mm) Singlewire: Ø10-12 / Doublewire: Ø6-8
  • Max. Bending Opportunity CW and CCW/Birectional
  • Rated Power 2 Servomotor 7,5 + 5,5 KW
  • Driving Motor 7,5 KW (servo motor)

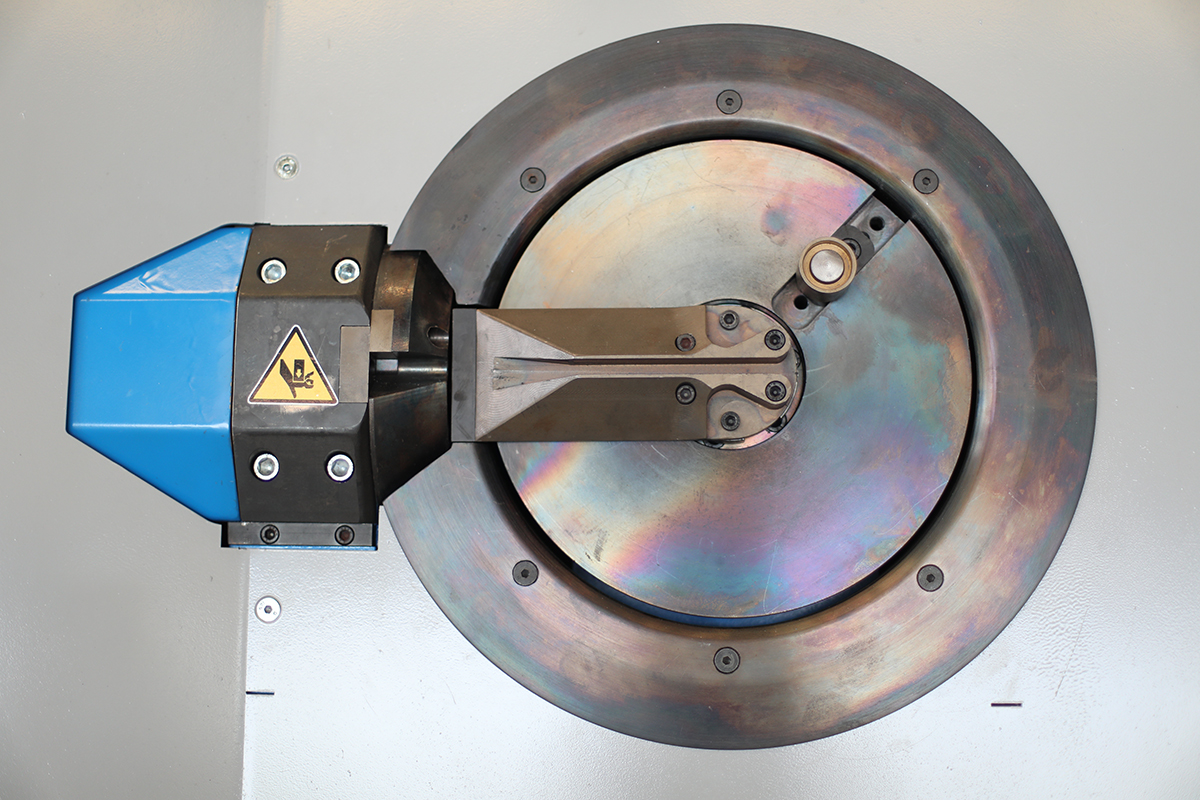

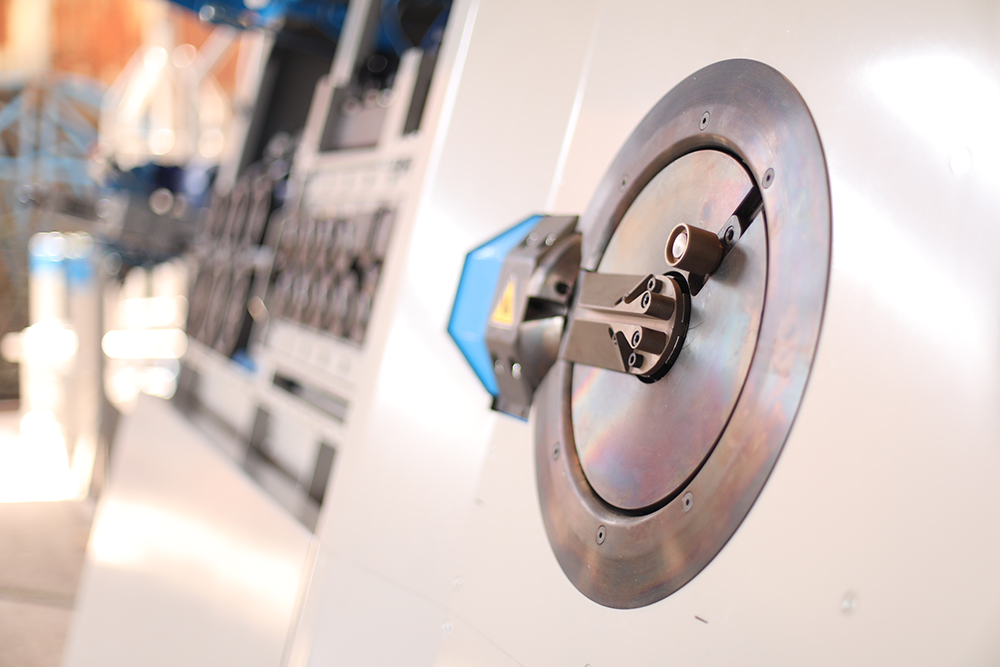

  • Bending Motor Power 5,5 KW (servo motor)
  • Length Tolerance ± 1 mm
  • Bending Tolerance ± 1°
  • Driving Speed 90m/minutes
  • Bending Speed 1200° / sec.

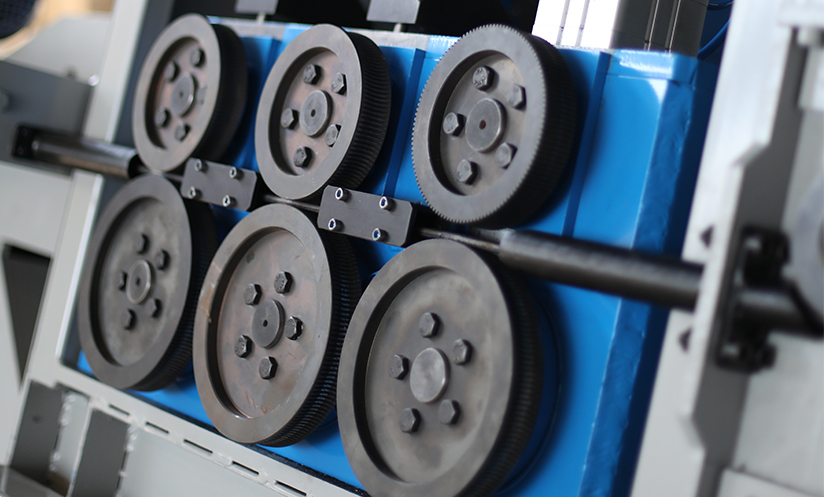

  • Pre-Strainghtening Unit X and Y Axis With multiple rollers

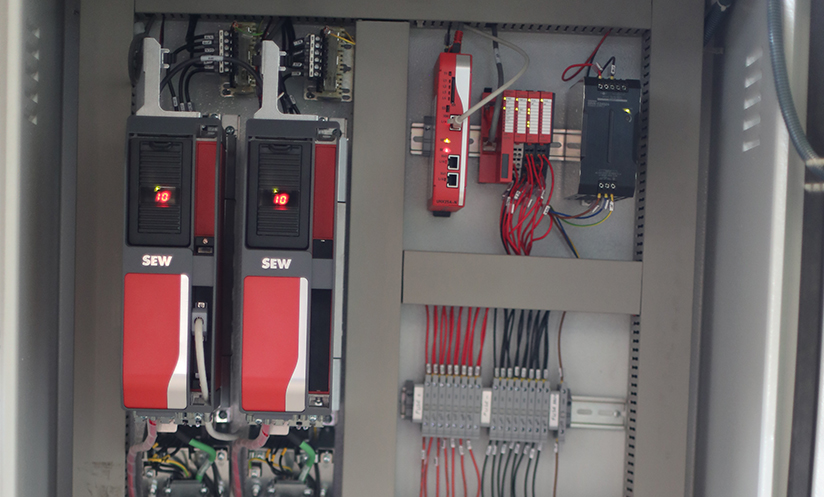

  • Control Unit Operator sensitive/friendly program, Shapes can be easily created helping with angles and length by operator. The program was written by Sew engineers.
  • Driving Unit Industrial type gearbox by EMPO
  • Bending Unit Industrial type gearbox by EMPO
  • Cutting Heav type industrial gear box
  • Averageair - compressed consumption 6H/min
  • Average - electric power consumption 4-6/Kw/h
  • Compressor Needed 200lt/min

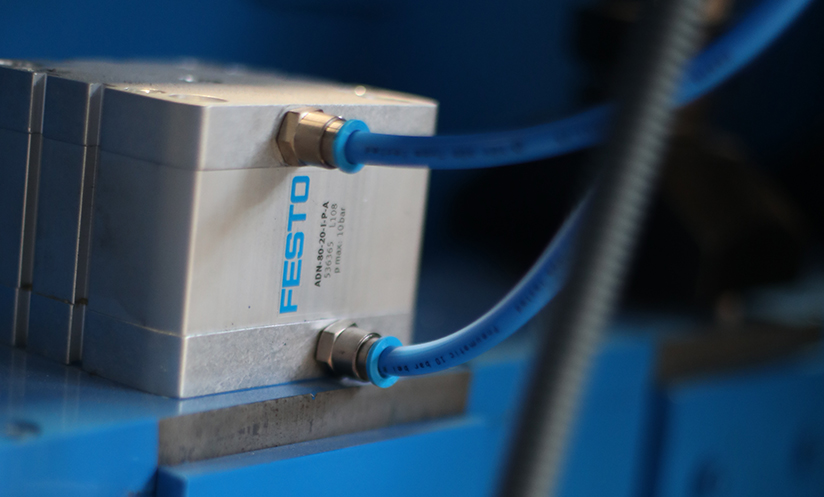

  • Working Pressure (bar) 6 Bar
  • Voltage 380v-50Hz-3Fhaze
  • Switch - Sensors Proximith Switches
  • Encoder 1024 Pulse/Sick Brand
  • Driving Gear Box 2379 Grade With Heat Treatment

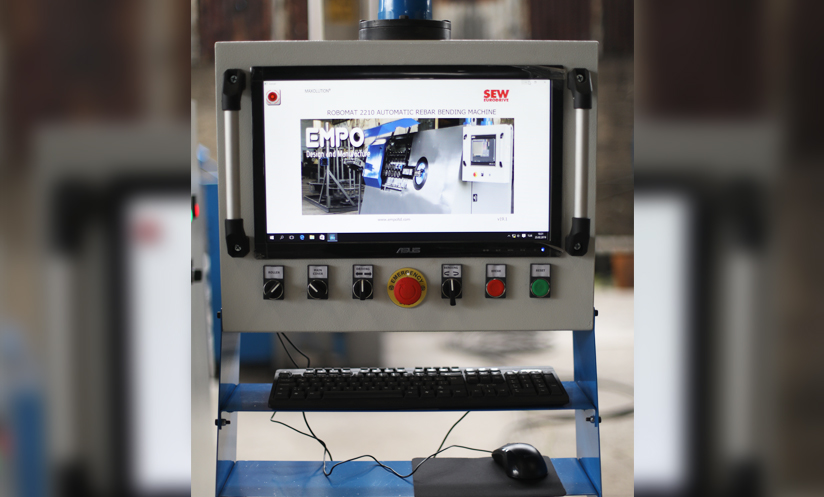

  • Control Panel Type LCD 18
  • Machine Dimensions (W x L x H) 1500mm x 4600mm x 1900mm
  • Machine Weight 2700 Kg
  • Control Program Language TR, ENG, FR, ARAB
  • HS CODE 84.62.29.98
