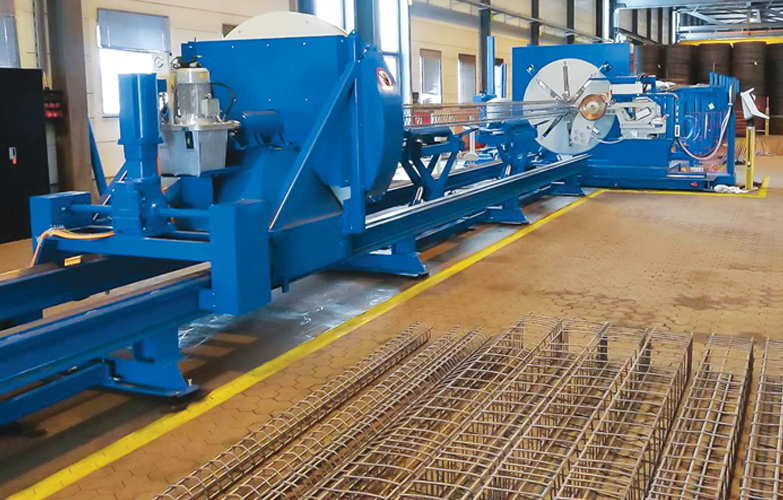

CWM-40 CAGE WELDING MACHINE

CWM-40 CAGE WELDING MACHINE Backward

CWM-40 CAGE WELDING MACHINE CWM-40 CAGE WELDING MACHINE CWM-40 CAGE WELDING MACHINE CWM-40 CAGE WELDING MACHINE

Technicial Specifications

  • Model GWM-40
  • Works with Raw Metarial Coil & Bar
  • Type of Wire Hot Rolled Wire &Bars
  • Min. pile cage diameter 600 mm min.
  • Max. pile cage diameter 1600 mm max.
  • Max. cage weight 4500 KG max.
  • Max. cage length 12,200 mm
  • Spiral wire diameter 6 – 12 mm
  • Longitudinal bar diameter 12 –32 mm max.
  • Spiral pitch 100-300 mm
  • Welding speed 25-30 welding spots/min
  • Installed power - welding 22 Kw
  • Installed power for rest of machine 22 Kw
  • LONGITUDINAL BAR FEEDING AND REEL SUPPORT UNITS Longitudinal bar feeding.
  • FIXED STANDARD DISC FIXED STANDARD DISC
  • MOVABLE STANDARD DISC Servo motor drive.
  • CAGE SUPPORTING UNIT Hydraulically operated. Automatic detective and lift for support cage.
  • Voltage 380V/50Hz/3Phase
  • Operator Panel Type Touch Panel 7 ’’
  • Machine Dimensions(WxLxH) 2500mmx30000mmx3250mm
  • Details System is under PLC controller, Machine speed , total produced,will produced will be monitoring on display.
  • SPIRAL WIRE PAYOFF AND UNIT 1 set spiral wire payoffs. Maximum carrying capacity 3,000Kg each.
  • COMPONENTS QUANTITY
  • Pay-off for coils 1 set
  • Longitudinal bar feeding and reel support unit 1 set
  • Fixed standard disc 1 set
  • Movable standard disc 1 set
  • Cage support unit 1 set
  • Electric cabinet and control system 1 set
  • Control system 1 set
  • Free spare parts 1 set
  • Tools 1 set
  • User’s manual 1 set
  • DESCRIPTION BRAND / ORIGIN
  • PLC SEW INDUSTRIAL / GERMANY
  • Servo Motors SEW INDUSTRIAL / GERMANY
  • Servo Drivers SEW INDUSTRIAL / GERMANY
  • Power Supply OMRON / JAPAN
  • Operator Screen LENZE / GERMANY
  • Electrical Switches SIEMENS / GERMANY
  • KLEMENS KLEMSAN / TURKEY
  • Pneumatics FESTO / GERMANY
2019-07-09
