Wire Drawing and Ribbing Machines

Wire Drawing and Ribbing Machines Backward

Wire Drawing and Ribbing Machines Wire Drawing and Ribbing Machines Wire Drawing and Ribbing Machines Wire Drawing and Ribbing Machines Wire Drawing and Ribbing Machines Wire Drawing and Ribbing Machines Wire Drawing and Ribbing Machines

Technicial Specifications

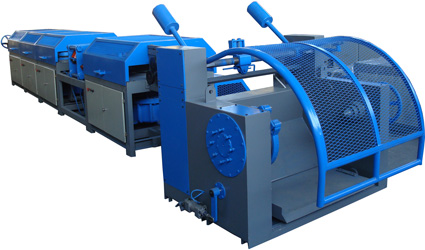

  • Model GTCHE-12
  • Works With Raw Metarial Coil (Low Carbon) sae 1006
  • Type of Wire For end Product Ribbed & Smooth sea 1008 - sea 1010
  • End Production Wire Ø4,5 -8mm / Ribbed&Smooth
  • Max. Wire Inlet Diameter Ø12mm /Ø4,5 -8mm: Outlet Dia / Ribbed&Smooth: Ø10 mm
  • Max. Wire Inlet Diameter Ø10mm /Ø4,5 -8mm: Outlet Dia / Ribbed&Smooth: Ø8 mm
  • Max. Wire Inlet Diameter Ø8mm /Ø4,5 -8mm: Outlet Dia / Ribbed&Smooth: Ø6 mm
  • Machine Speed Ø6mm /Ø4,5 -8mm: Outlet Dia / Ribbed&Smooth: Ø4 mm
  • Rated Power 37Kw+37Kw+37Kw
  • First Head Motor 37 Kw
  • Second Head Motor 37 Kw
  • Third Head Motor 37 Kw
  • Spooler Motor 22 Kw
  • Head Diameters Ø600 mm
  • Captain Block 3Heads
  • Motor Drivers AC Frequency inverter for 37-37-37 Kw ystem will be work with dancer mentality and control by PLC

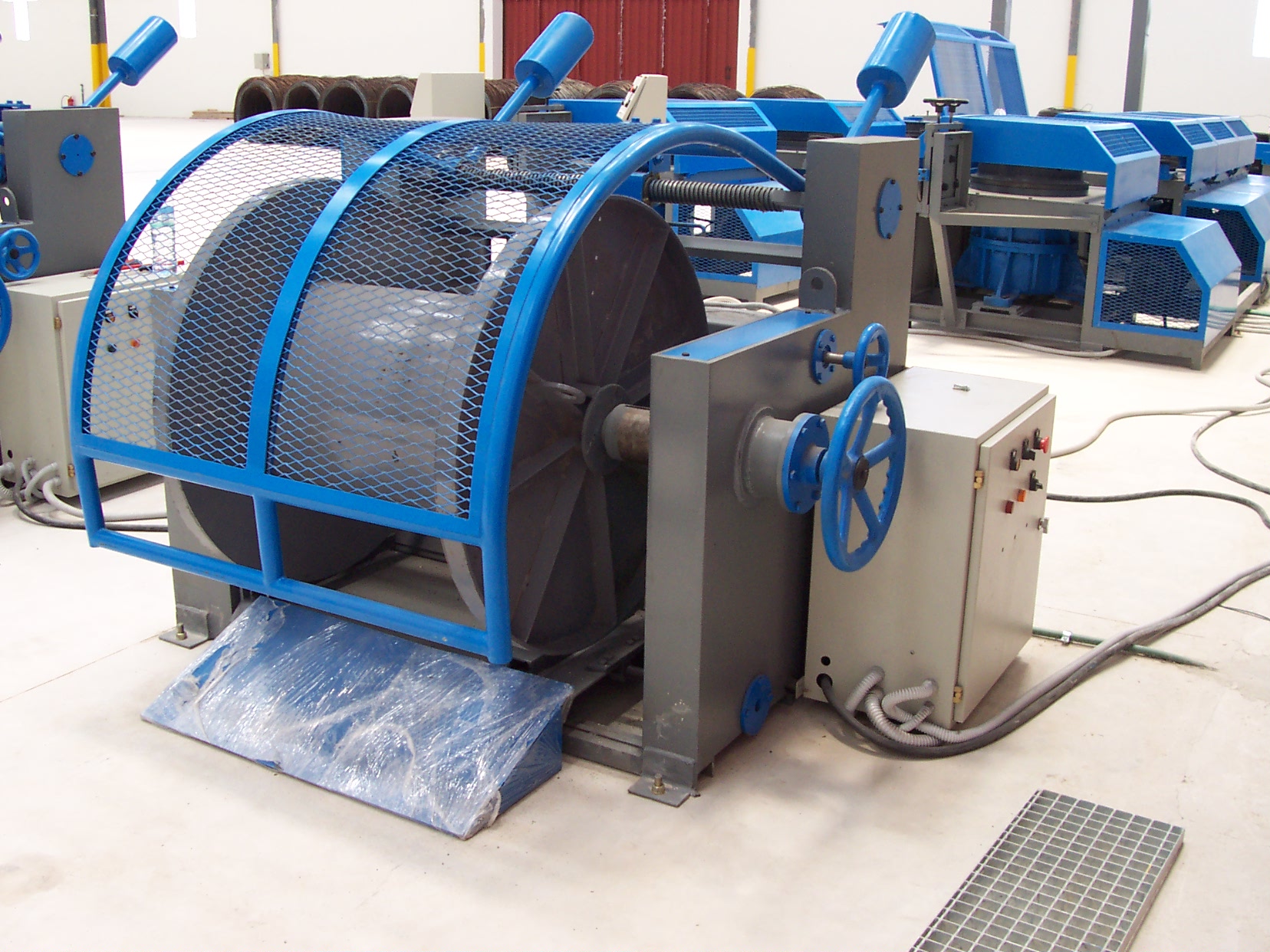

  • Spooler 11Kw AC frequency inverter controller
  • Spooler's Pulley Capacity 2000 Kg Max. + 2 Units Pulley will given with the machine
  • Cleaning Part Phosphatingtreatment

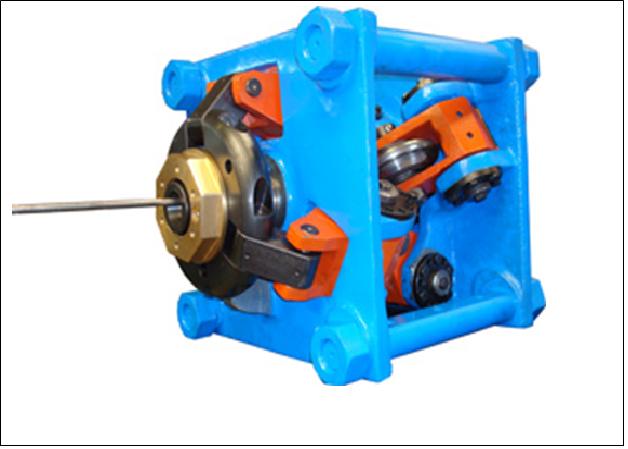

  • Ribbed & Crusher Disc Casette Adjustable for each diameters
  • Ribbed & Crusher Disc Will given with machine 1 set with all components (bearings + holders)
  • Ribbed Disc & Crusher Disc Metarials 2379 Grade
  • Wire Diameter To Spool Ø10- Ø4mm (max.)
  • Gear Box Units Industrial type gearbox by EMPO
  • Descaling Units Will be with machine X&Y axis
  • Compressor Needed 300lt/min
  • Working Pressure (Bar) 1-6 Bar
  • Voltage 380 V - 50 Hz- 3 Fhaze
  • HS CODE 84.63.10.10

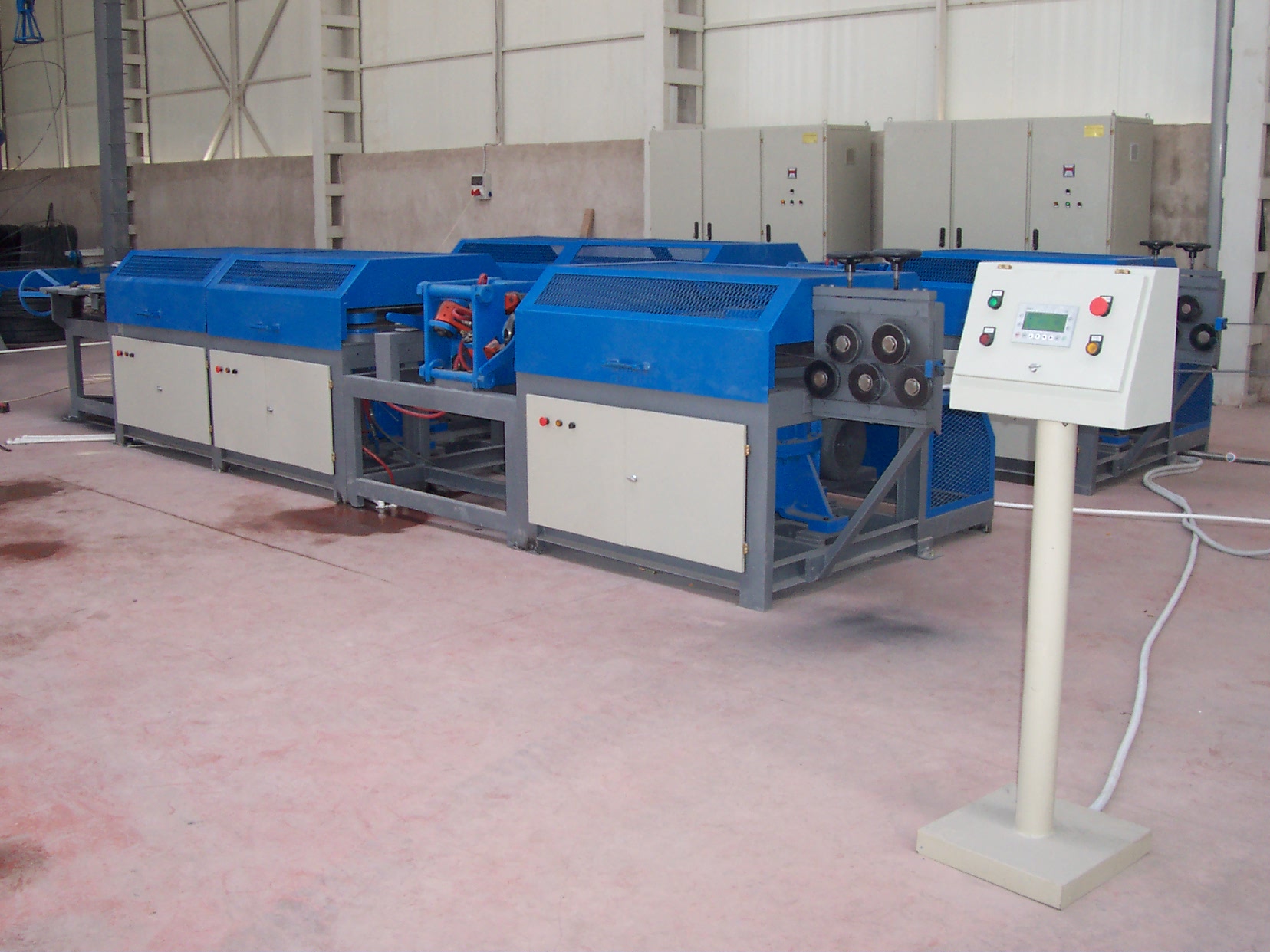

  • Operator Panel Type Display with buttons
  • Machine Dimensions (WxLxH) 2000mm x 20000mm x 1500mm
  • Machine Weight 8000Kg

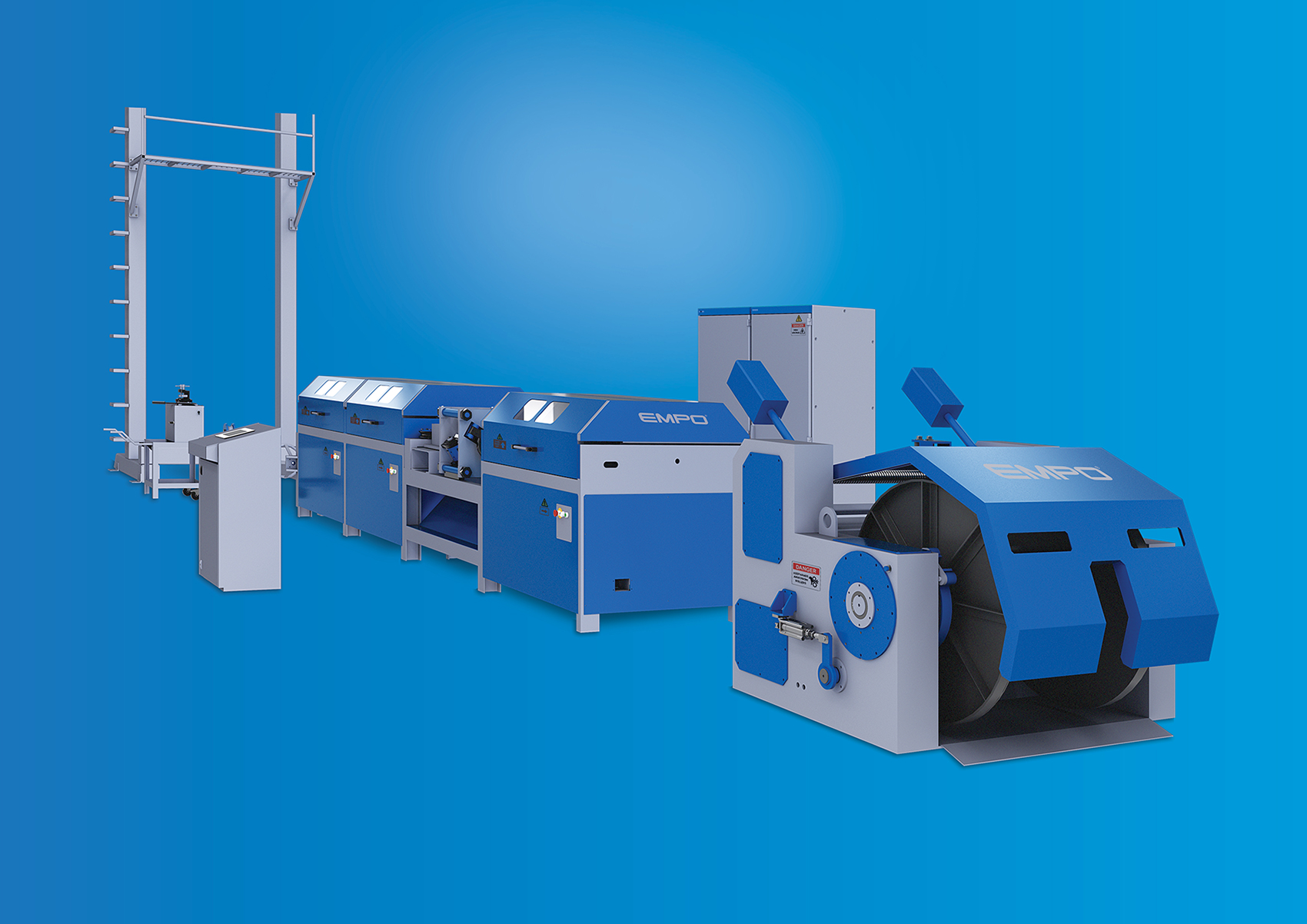

  • Gantry Tower (Coil Opener) Will be given with the machine
  • Details Whole system is under PLC controller, main motor and spooler motors are adjustable with AC Frequency inverters. All heads has abrasion resistance by helping special head alloy content and all heads annealed. The body is heavy duty steel constructed. All gear box made by our. self.
2019-06-24
