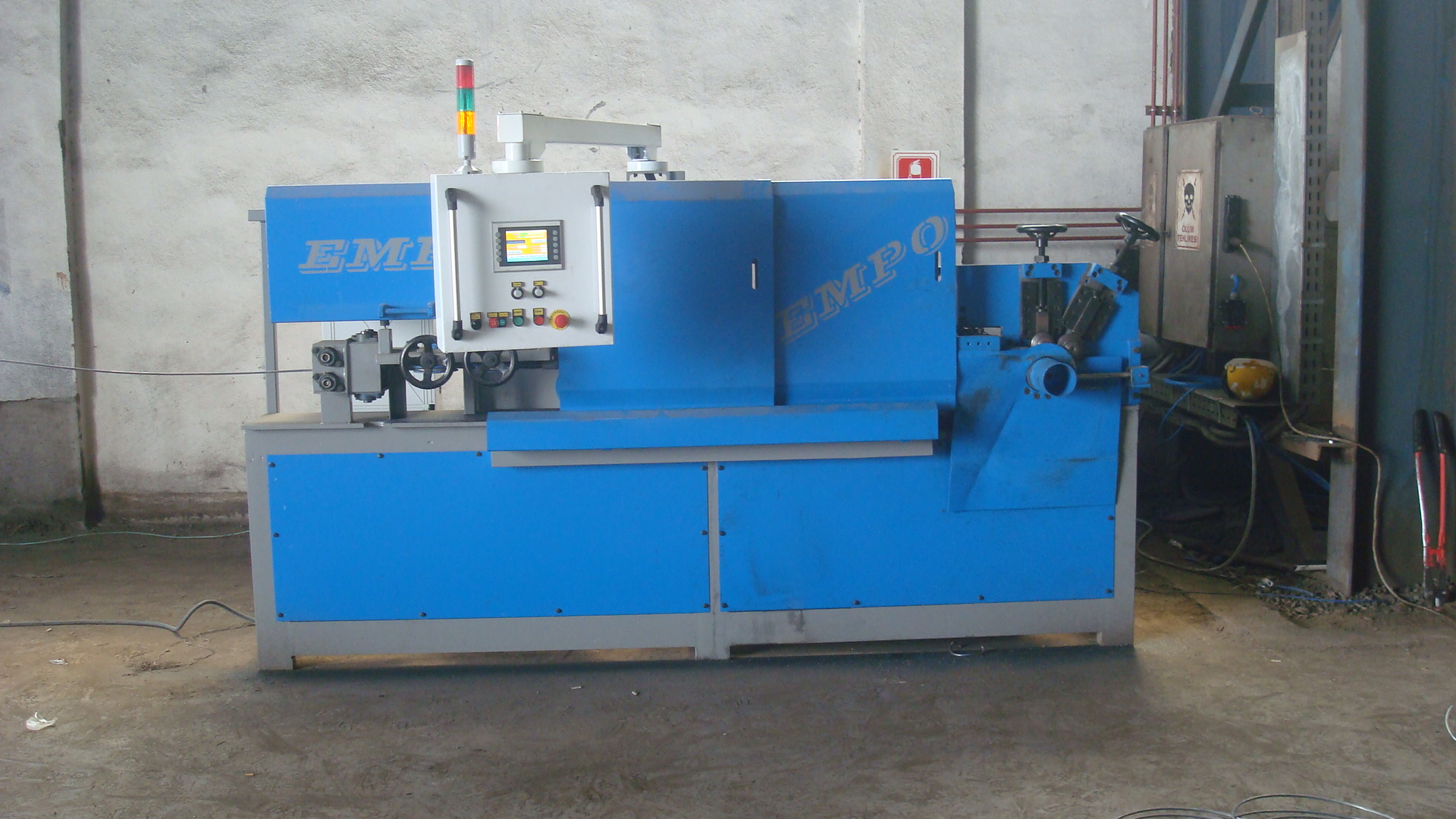

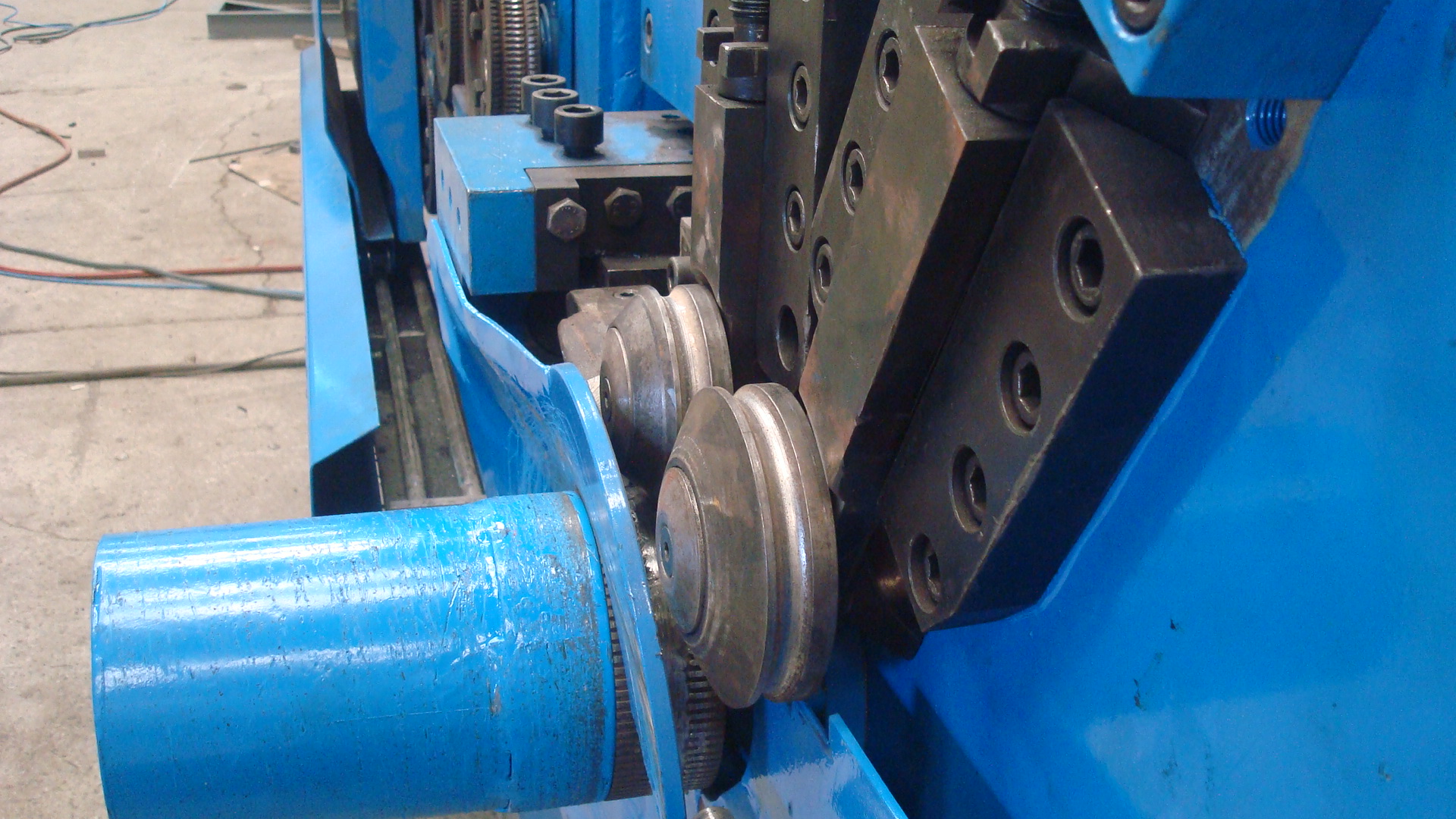

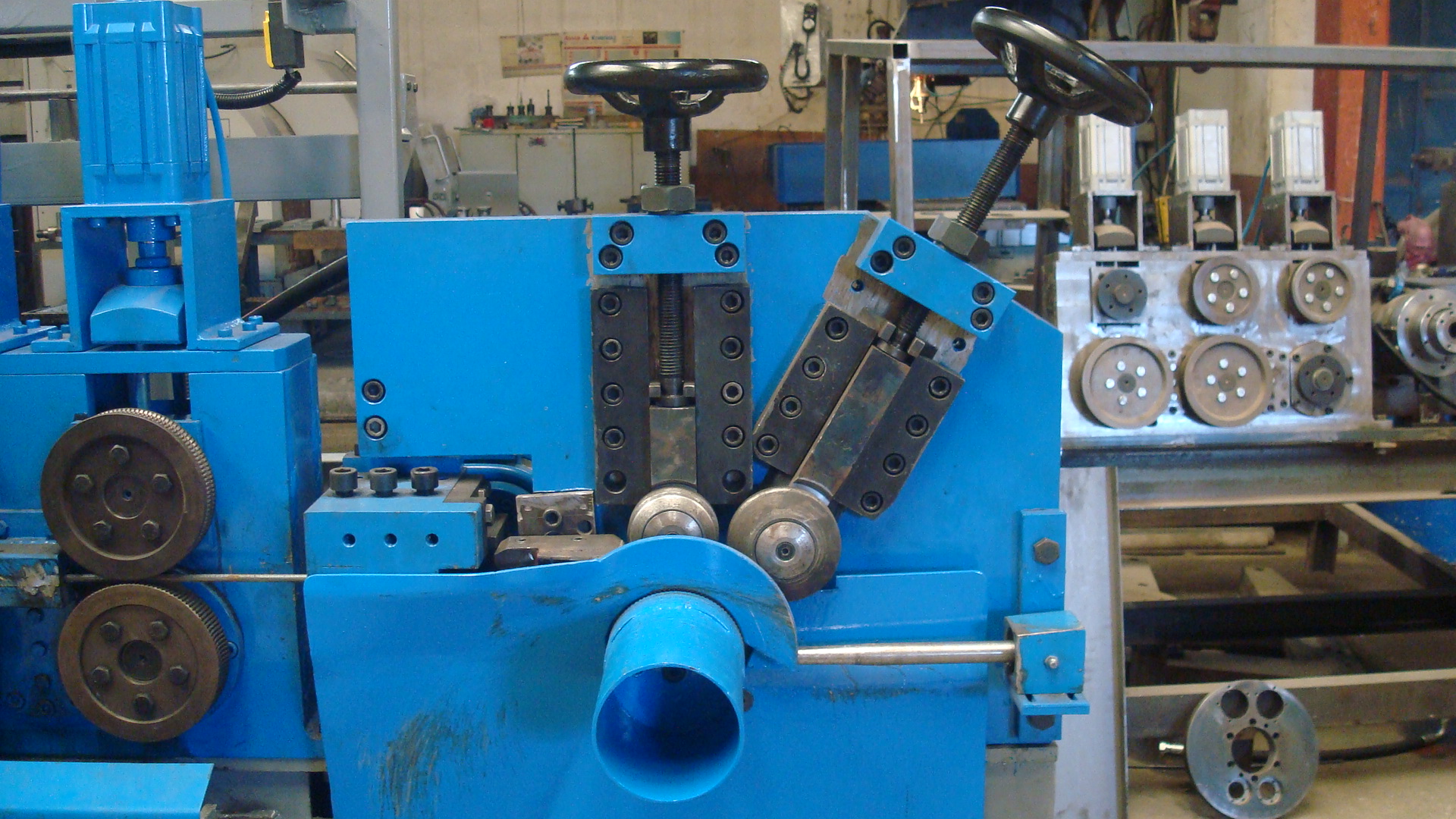

SP-12 Spiral Machine

SP-12 Spiral Machine Backward

SP-12 Spiral Machine SP-12 Spiral Machine SP-12 Spiral Machine SP-12 Spiral Machine SP-12 Spiral Machine

Technicial Specifications

  • Model SP-12
  • Steel Grade Up to 570 N mm²
  • Wire Diameters Ø5 - Ø12mm
  • Spiral Diameters 200mm(mic) - 1200mm(max)
  • Pitch Range 0-200 mm
  • Kick of Length 3m
  • Speed of Machine 90m/min
  • Cutting Hydraulic
  • Dimension (LxWxH) 3500mm x 2500 mm x 2000mm
  • Operating Voltage 380 V / 50Hz
  • Connected Load 20 KW
  • Average Power Consumption 10 KW
  • Main Fuse 63-80A
  • HS CODE 84.63.30.00
