Robomat 2210 Automatic Stirrup Bending Machine

Robomat 2210 Automatic Stirrup Bending Machine Backward

Robomat 2210 Automatic Stirrup Bending Machine Robomat 2210 Automatic Stirrup Bending Machine Robomat 2210 Automatic Stirrup Bending Machine Robomat 2210 Automatic Stirrup Bending Machine Robomat 2210 Automatic Stirrup Bending Machine Robomat 2210 Automatic Stirrup Bending Machine Robomat 2210 Automatic Stirrup Bending Machine Robomat 2210 Automatic Stirrup Bending Machine Robomat 2210 Automatic Stirrup Bending Machine

Technicial Specifications

  • Model ROBOMAT - 2210
  • Works With Raw Metarial Coil
  • Type of Wire Ribbed & Smooth
  • Production Capacity (mm) Singlewire: Ø10 / Doublewire: Ø5-8
  • Max. Bending Opportunity CW and CCW/Birectional
  • Driving Opportunity Manuel and Automatic Forward and Backward
  • Rated Power 2 Servomotor 5.5 + 5.5 KW
  • Driving Motor 5,5 KW (servo motor)
  • Bending Motor Power 5,5 KW (servo motor)
  • Driving Speed 80m/minutes
  • Bending Speed 1000°/sec
  • Length Tolerance ± 1 mm
  • Bending Tolerance ± 1°

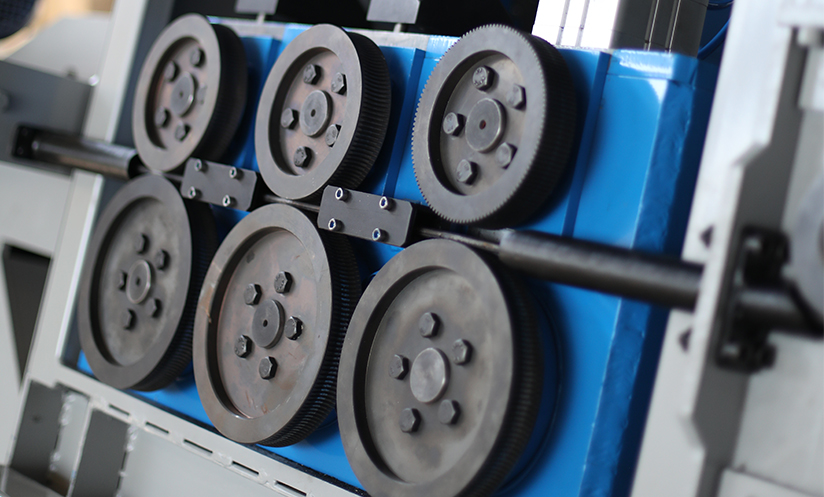

  • Pre-Strainghtening Unit X and Y Axis With multiple rollers
  • HS CODE 82.62.29.98

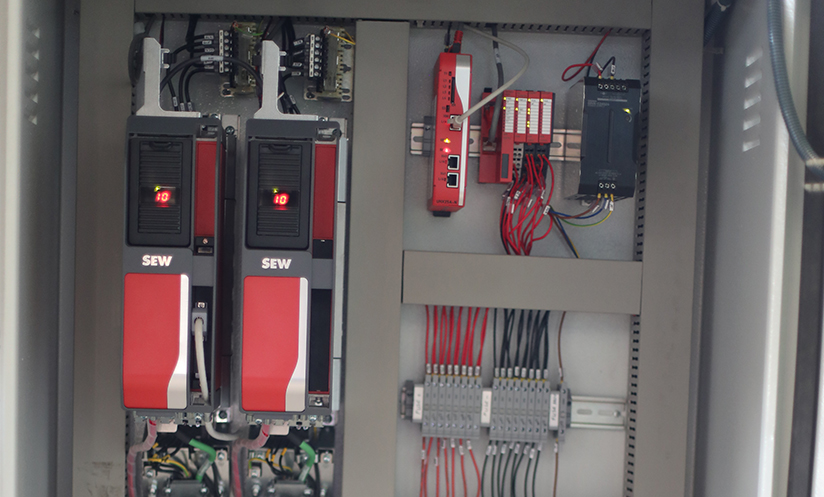

  • Control Unit Operator sensitive/friendly program, Shapes can be easily created helping with angles and length by operator. The program was written by Sew engineers.
  • Driving Unit Industrial type gearbox by EMPO

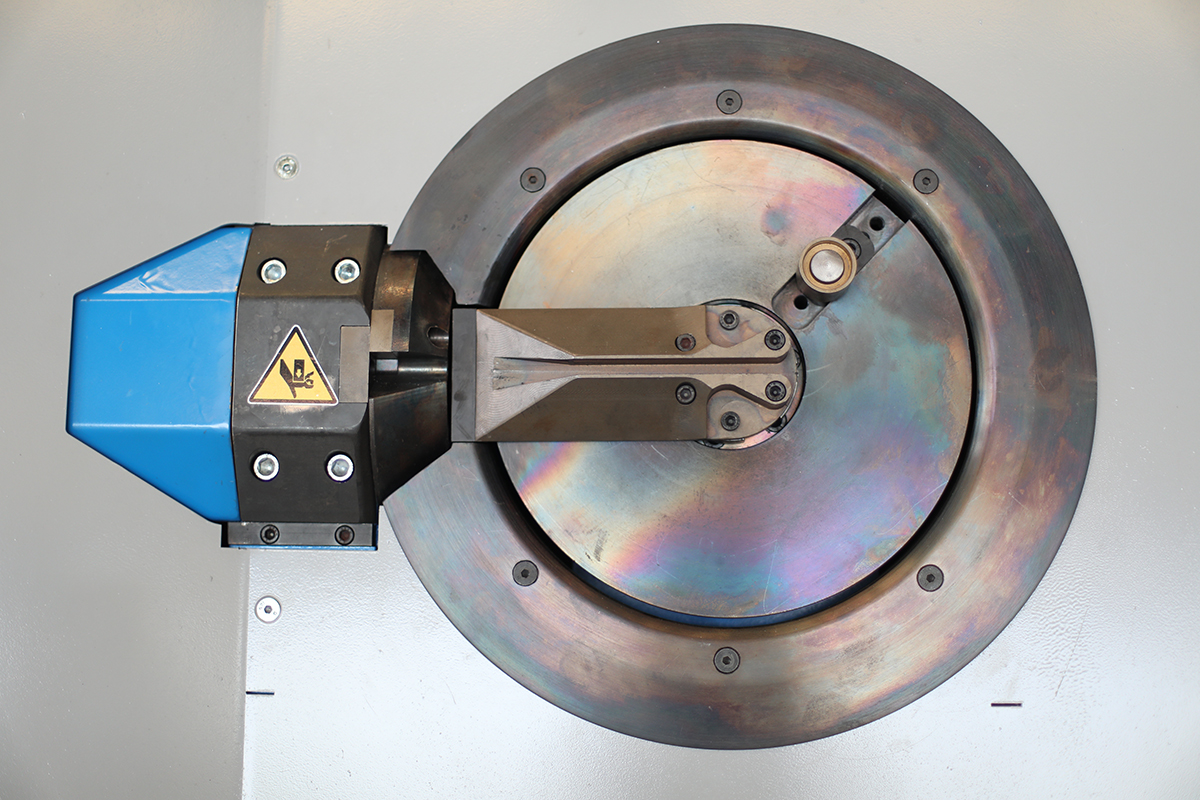

  • Bending Unit Industrial type gearbox by EMPO
  • Averageair - compressed consumption 6H/min
  • Average-electric Power Consumption 4-8Kw/h
  • Averageair - compressed consumption 6I/min
  • Compressor Needed 200lt/min
  • Working Pressure (bar) 6 Bar
  • Cutting Heavy type industrial gear box
  • Voltage 380 V - 50 Hz- 3 Fhaze
  • Switch - Sensors Proximity Switches
  • Encoder 1024 Pulse/Sick Brand
  • Driving Gear Box 2379 Grade with Heat Treatment

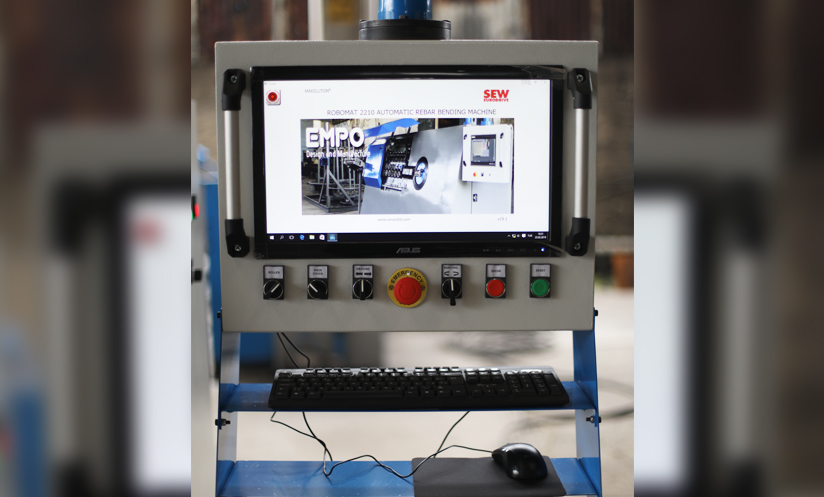

  • Control Panel Type LCD 18" Panel / 15"
  • Machine Dimensions (W x L x H) 1500 mm x 4600 mm x 1900 mm
  • Machine Weight 2400 Kg
  • Language TR, ENG, FR, BULGARIAN (OPTIONAL)
2019-06-28
