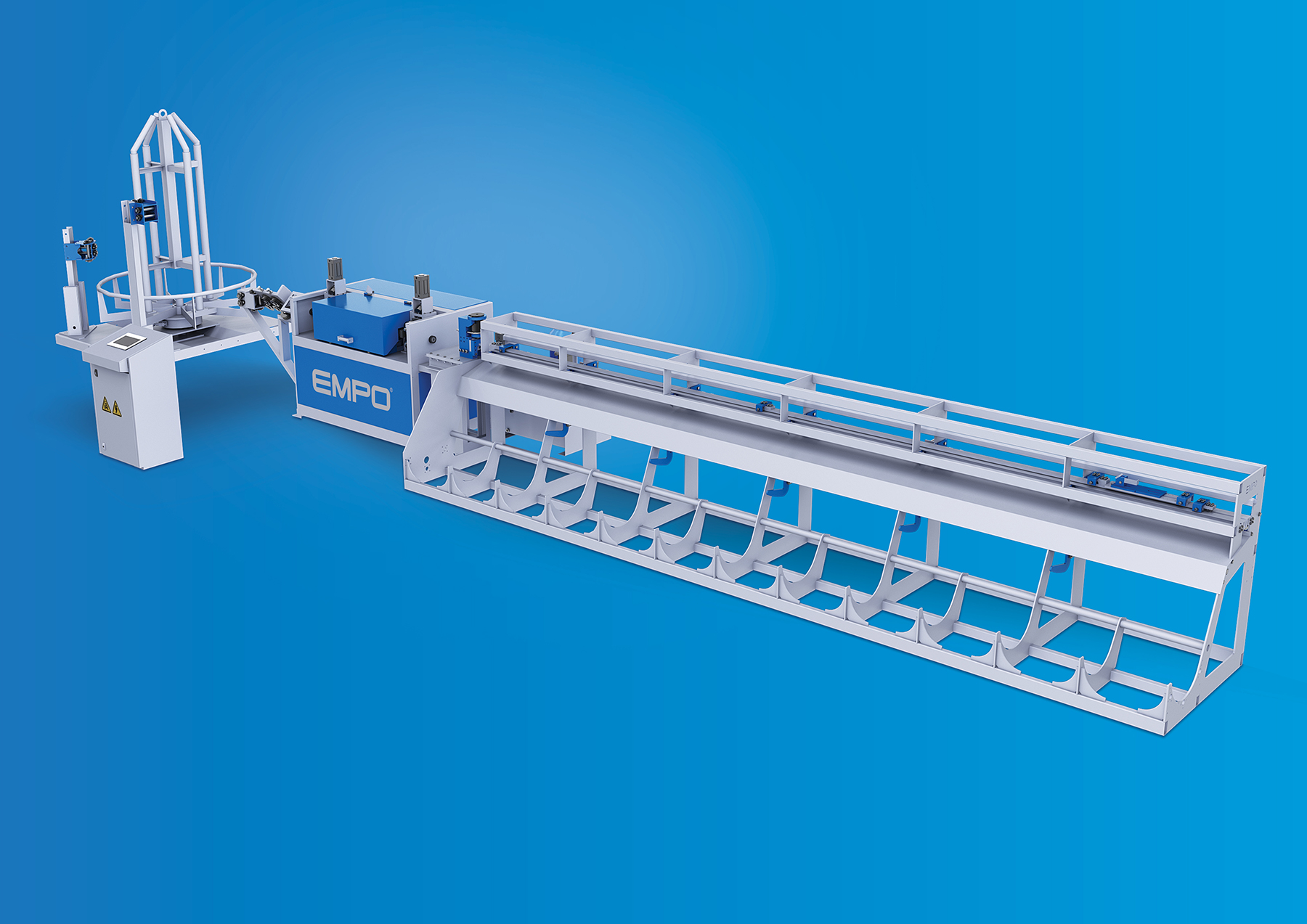

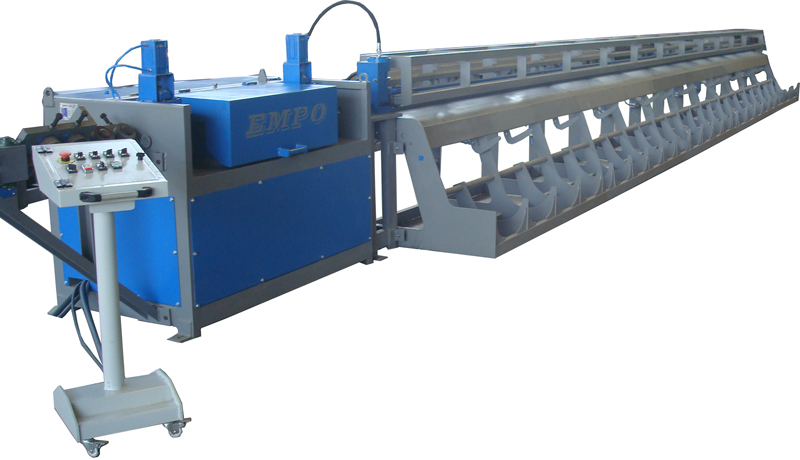

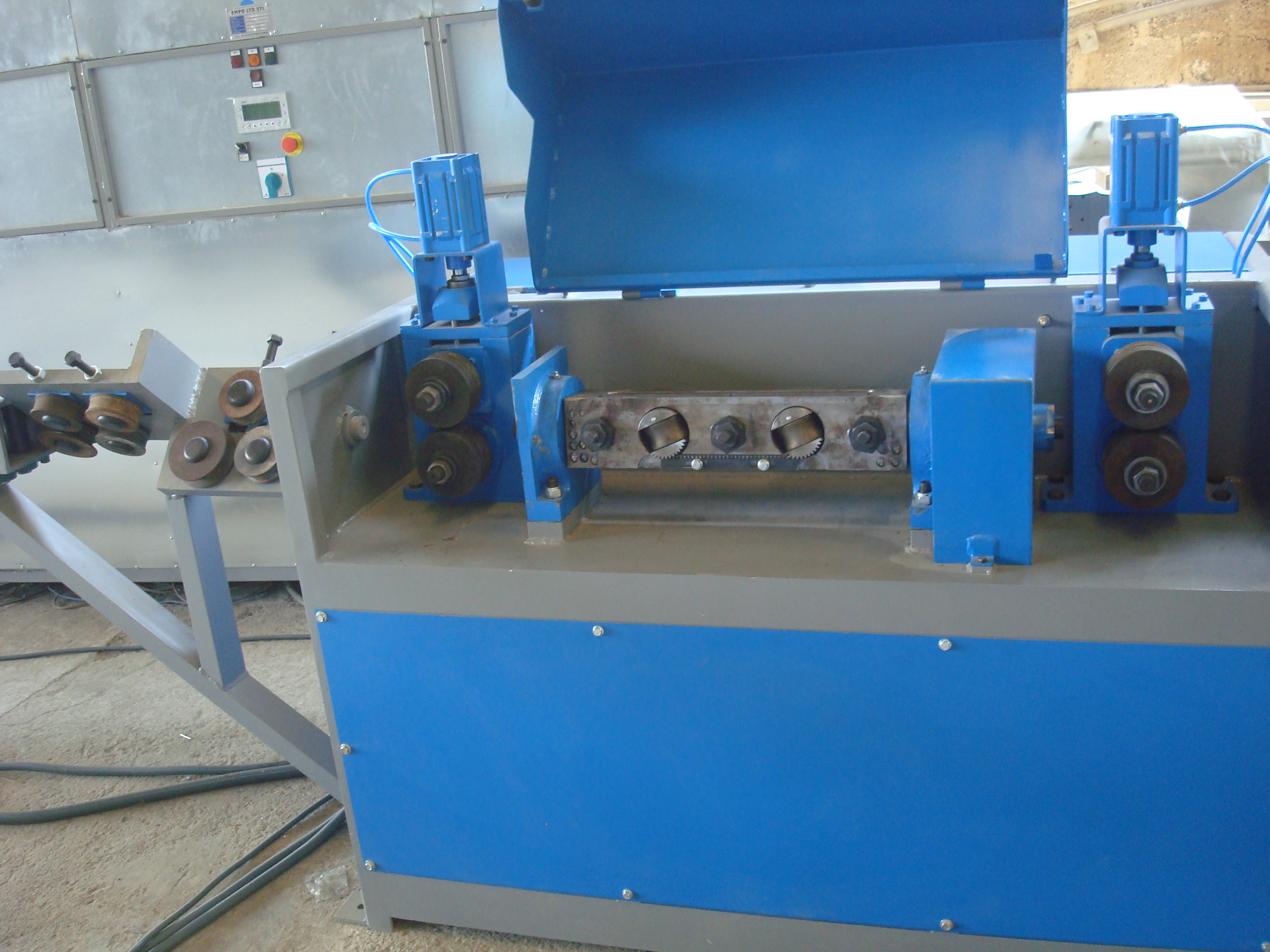

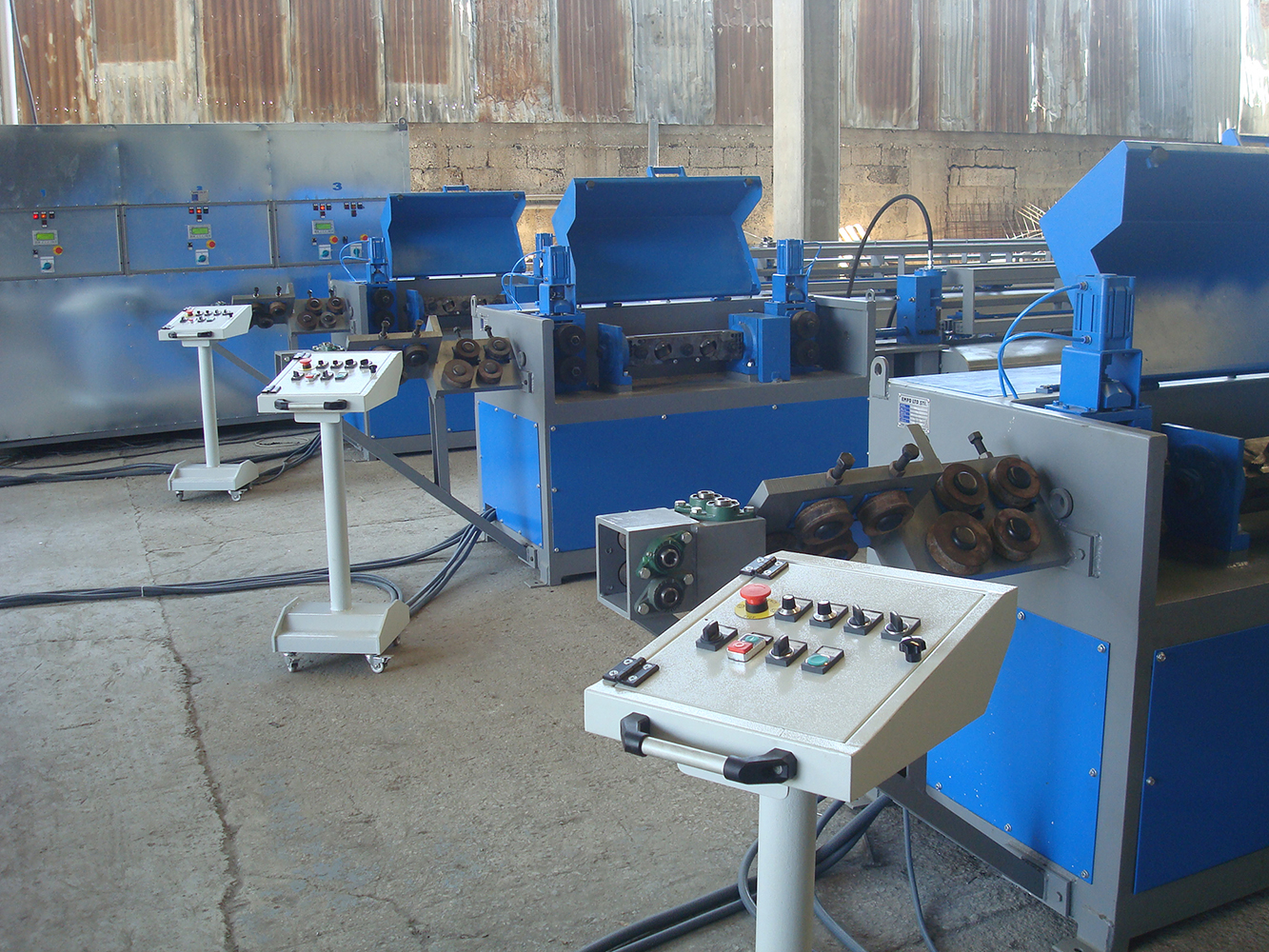

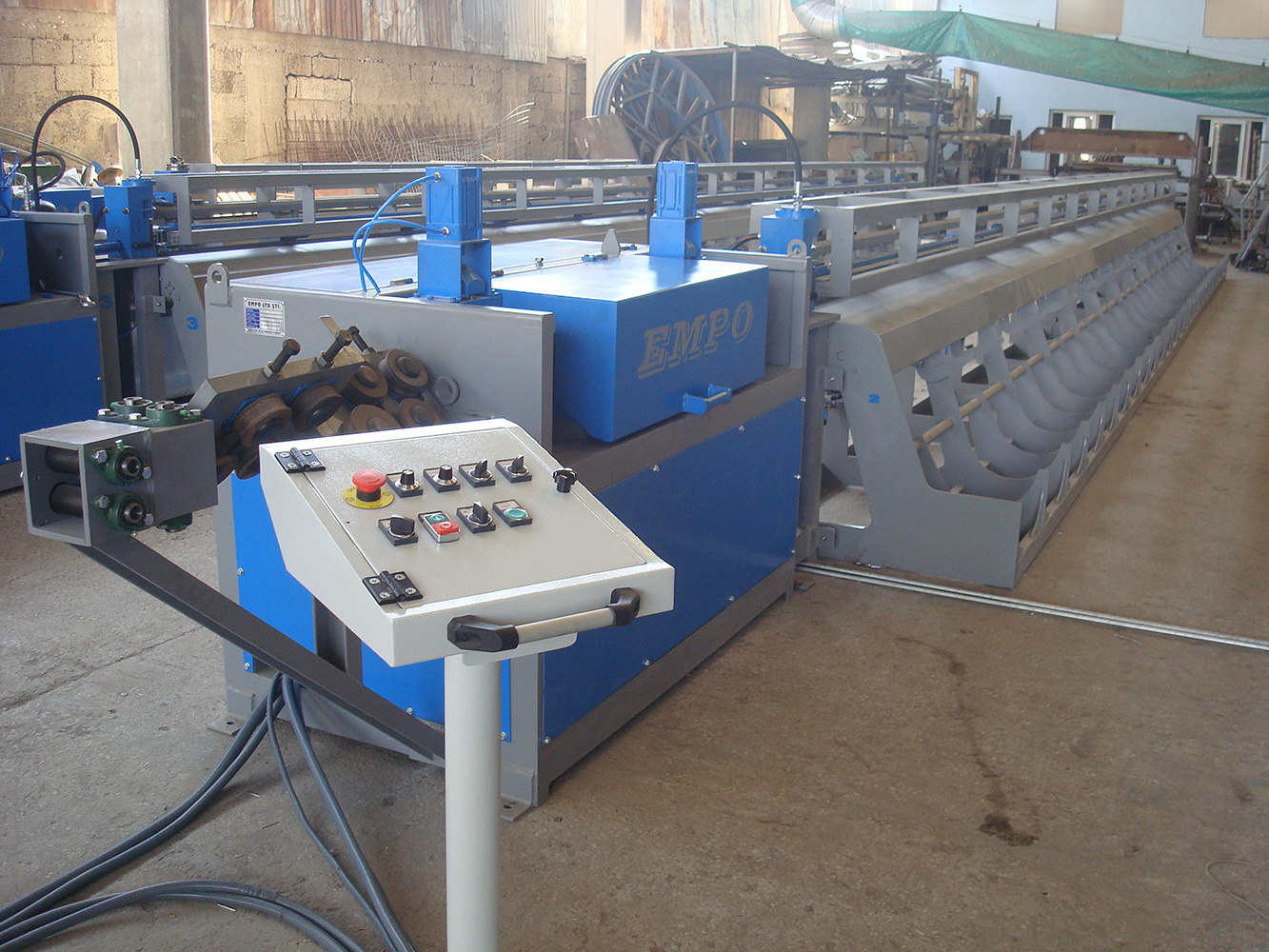

Wire Straightening And Cutting Machines

Wire Straightening And Cutting Machines Backward

Wire Straightening And Cutting Machines Wire Straightening And Cutting Machines Wire Straightening And Cutting Machines Wire Straightening And Cutting Machines Wire Straightening And Cutting Machines Wire Straightening And Cutting Machines Wire Straightening And Cutting Machines Wire Straightening And Cutting Machines

Technicial Specifications

  • Model GH-12
  • Works With Raw Metarial Coil
  • Type of Wire Hot Rolled Wire / Cold Drawn Wire / Ribbed & Smooth
  • Production Capacity (mm) Ø6 - Ø8 - Ø10 - Ø12
  • Machine Speed Min. & Max. / 60m/min. / 110m/min.
  • Driving Opportunity Manual Forward and Bacward
  • Rated Power 2 Motor 22/Kw + 5,5 Kw
  • Main (Rotor) Motor 22/Kw with inverter control
  • Driving Gear Box Motor Power 7,5 Kw with inverter control
  • Hydraulic Cutting Motor Power 5,5Kw
  • Straightening Technic Rotor
  • Measurement Technic Limit Switched
  • Max. & Min. Cutting Length 1m-12m
  • Length Tolerance ±2mm/12m

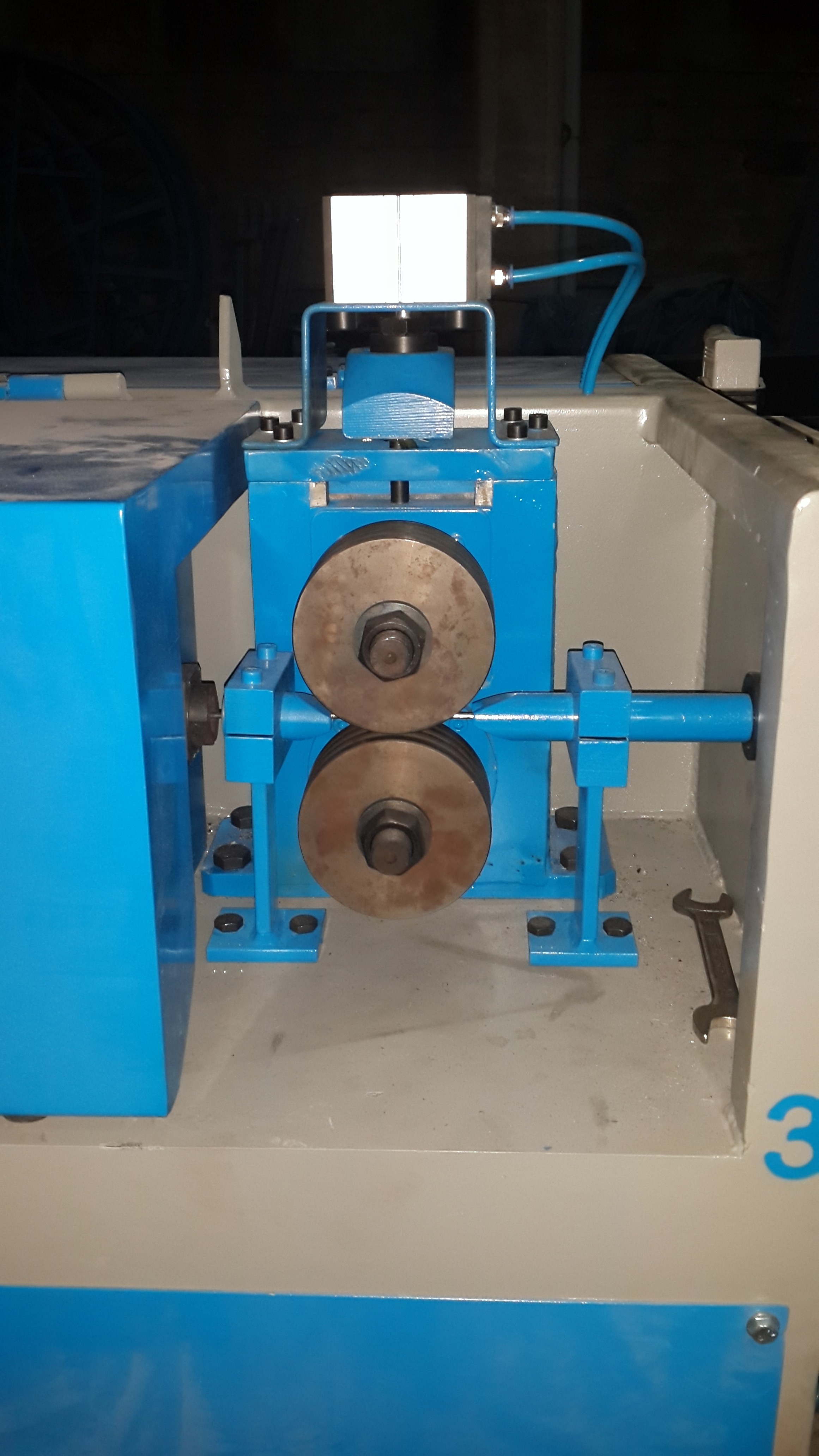

  • Driving Roller Heat Treatment with Highest Quality Metarial
  • Pre-Strainghtening Unit X and Y Axis with rollers
  • Cutting Shear Unit Hydraulic Cutting type by EMPO
  • Driving Gear Box Unit Industrial Type Gear Box By EMPO
  • Averageair - compressed consumption 10l/min
  • Average-electric Power Consumption 10-12Kw
  • Compressor Needed 200lt/min
  • Working Pressure (Bar) 6Bar
  • Voltage 380 V - 50 Hz- 3 Fhaze
  • Electric Switches Siemens
  • Operator Panel Type Touch Panel 7
  • Machine Diemensions (WxLxH) 1500mm x 15000mm x 1500mm
  • Machine Weight 3000Kg
  • Additional Pay-off (Coil Opener) Pay-off (1 unit), which has 2 tons loading capacity, will be given with the machine.
  • Details System is under PLC controller, main motor & driving motors are adjustable with AC frequency converters. Machine speed, rotal produced, will produced will be monitoring on display.
  • HS CODE 84.62.29.98
