Robomat 2208 Automatic Stirrup Bending Machine

Robomat 2208 Automatic Stirrup Bending Machine Backward

Robomat 2208 Automatic Stirrup Bending Machine Robomat 2208 Automatic Stirrup Bending Machine Robomat 2208 Automatic Stirrup Bending Machine Robomat 2208 Automatic Stirrup Bending Machine Robomat 2208 Automatic Stirrup Bending Machine Robomat 2208 Automatic Stirrup Bending Machine Robomat 2208 Automatic Stirrup Bending Machine Robomat 2208 Automatic Stirrup Bending Machine Robomat 2208 Automatic Stirrup Bending Machine

Technicial Specifications

  • Model ROBOMAT - 2208
  • Works With Raw Metarial Coil
  • Type of Wire Ribbed & Smooth
  • Production Capacity (mm) Singlewire: Ø8 / Doublewire: Ø4 - Ø5 - Ø6
  • Max. Bending Opportunity CW and CCW/Birectional
  • Driving Opportunity Manuel and Automatic Forward and Backward
  • Rated Power 2 Servomotor 4Kw + 3 Kw Servo Motors
  • Driving Motor 4 KW (servo motor)
  • Bending Motor Power 3 KW (servo motor)
  • Length Tolerance ± 1 mm
  • Bending Tolerance ± 1°
  • Driving Speed 70m/minutes
  • Bending Speed 1000°/sec

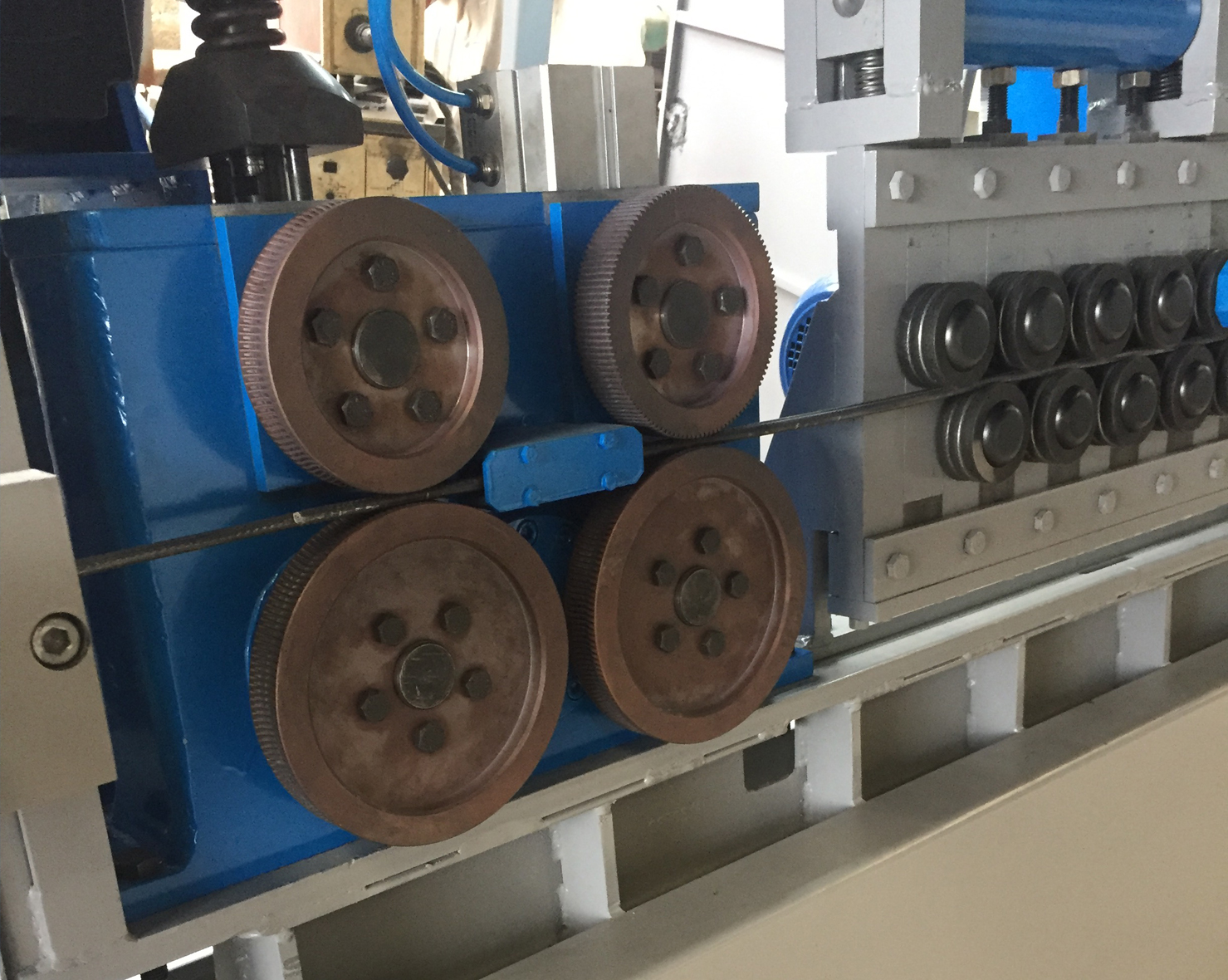

  • Straightening Unit X and Y Axis With Multiple Rollers
  • HS CODE 82.62.29.98
  • Control Unit Operator sensitive/friendly program, Shapes can be easily created helping with angles and length by operator. The program was written by Sew engineers.
  • Driving Unit Industrial type gearbox by EMPO
  • Bending Unit Industrial type gearbox by EMPO
  • Averageair - compressed consumption 6l/min.
  • Average - Electric Power Consumption 4-6 Kw
  • Compressor Needed 200lt/min
  • Working Pressure (bar) 6 Bar
  • Cutting Heavy type industrial gear box
  • Voltage 380 V - 50 Hz- 3 Fhaze
  • Electric Switches Siemens
  • Servo Motors SEW Indutrial
  • Servo Drivers SEW Industrial

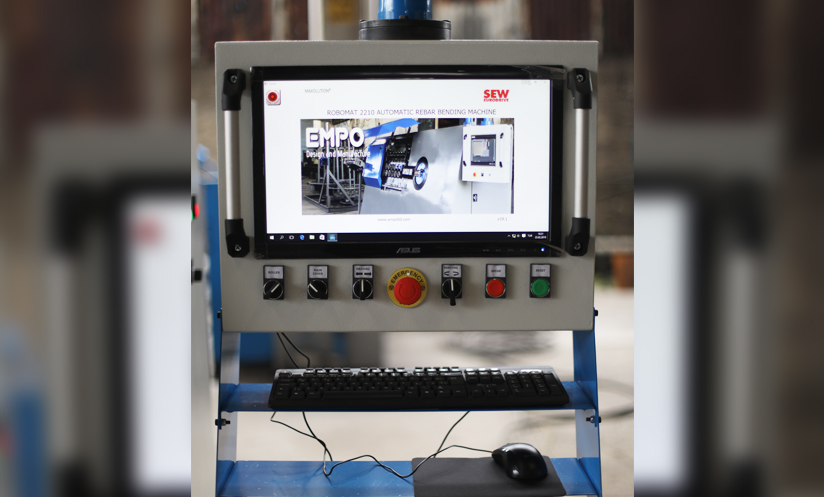

  • Control Panel Type LCD 18" Panel / 15"
  • Machine Dimensions (W x L x H) 1500mm x 4600mm x 1900mm
  • Machine Weight 1800 kg
